General description
Specifications
| Weights | |
| Empty weight | 195 kg |
| Maximum takeoff weight | 408 kg |
| Maximum landing weight | 390 kg |
| Dimensions | |
| Wingspan | 5.18 m |
| Length | 4.57 m |
| Height | 1.52 m |
| Engine | |
| Fuel capacity | 130 L |
| Dry weight | 37 kg |
| Maximum thrust | 1.1 kN |
| Maximum continuous | 1.0 kN |

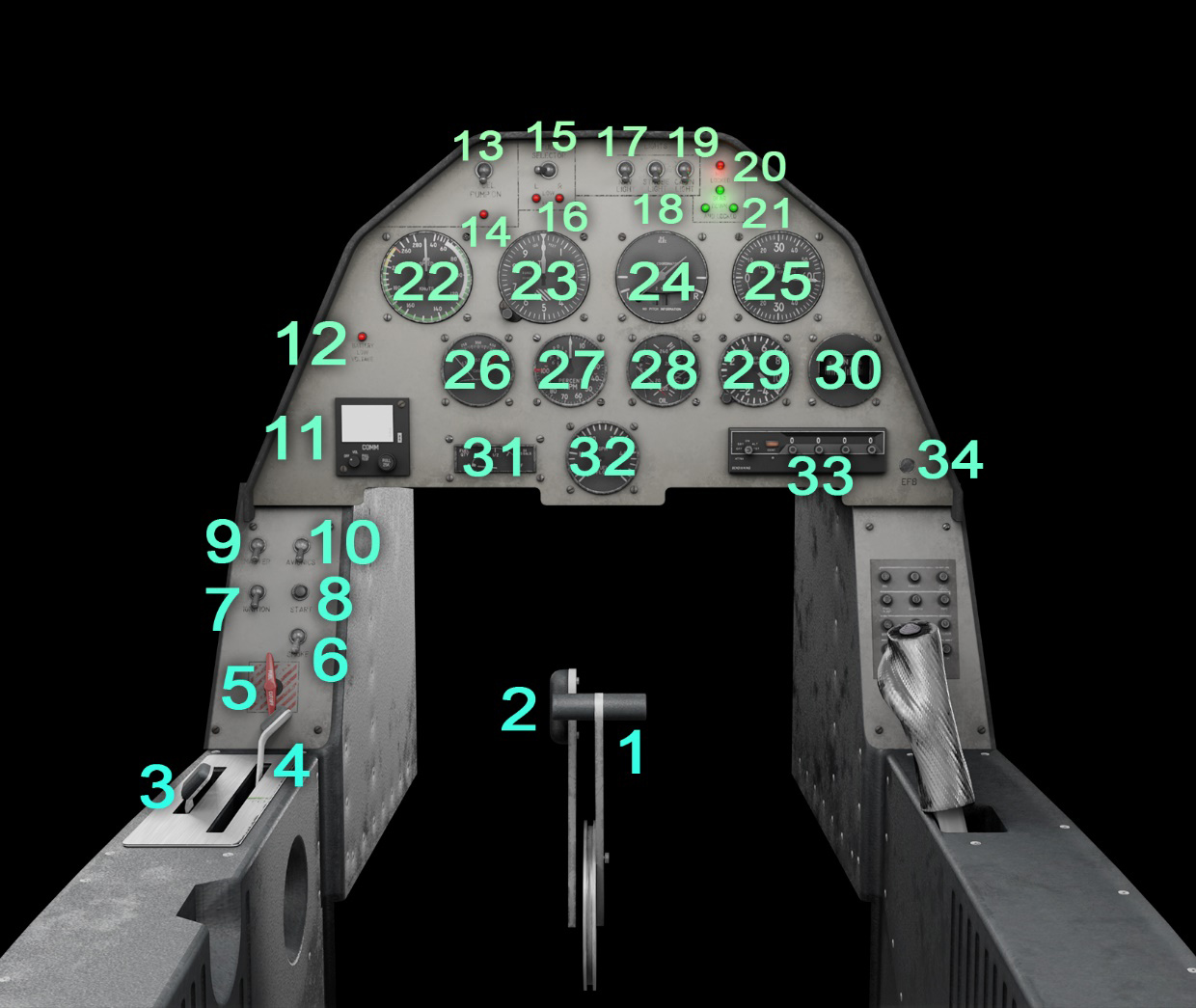

Detailed view
| # | Description | # | Description |
|---|---|---|---|
| 1 | Landing gear handle | 18 | Strobe lights switch |
| 2 | Flaps handle | 19 | Cabin light switch |
| 3 | Throttle | 20 | Gear not locked light |
| 4 | Trim lever | 21 | Gear down lights |
| 5 | Fuel cutoff | 22 | Anemometer (kts) |
| 6 | Smoke switch | 23 | Altimeter (ft) |
| 7 | Ignition switch | 24 | Turn coordinator |
| 8 | Starter | 25 | Variometer (ft/min) |
| 9 | Master switch | 26 | Exhaust gas temperature (Celsius) |
| 10 | Avionics switch | 27 | Engine RPM (%) |
| 11 | Radio (COM 1) | 28 | Oil pressure (PSI) and temperature (Fahrenheit) |
| 12 | Low voltage light | 29 | Accelerometer |
| 13 | Fuel pump switch | 30 | Compass |
| 14 | Fuel pump light | 31 | Fuel level gauge |
| 15 | Fuel selector switch | 32 | Fuel flow (GPH) |
| 16 | Low fuel lights | 33 | Transponder |
| 17 | Navigation lights switch | 34 | EFB button |
