General description
Specifications
| Weights | |
| Empty weight | 2,290 kg |
| Gross weight (without tip tanks) | 2,850 kg |
| Maximum takeoff weight | 3,200 kg |
| Dimensions | |
| Wingspan (including tip tanks) | 12.5 m |
| Length | 10.06 m |
| Height | 2.8 m |
| Wing area | 17.3 m² |
| Tail area | 3.75 m² |
| Tail opening angle | 110° |
| Engines | |
| Fuel capacity | 980 L |
| Maximum thrust | 3.92 kN |
| Maximum engine speed | 22,500 RPM |
Detailed views

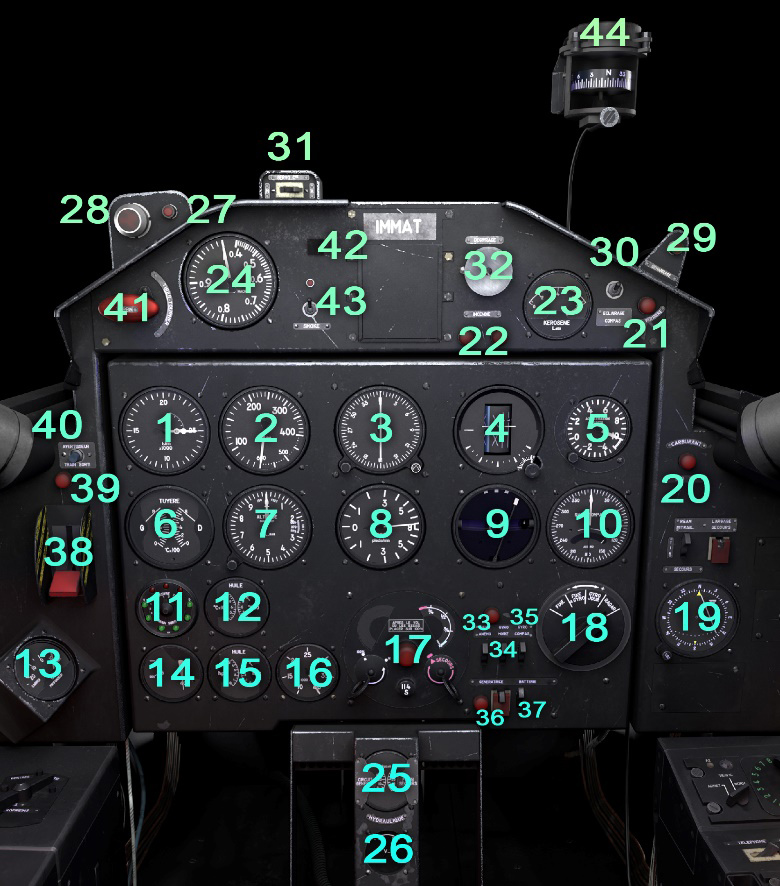

Front panel (pilot)
| # | Description | # | Description |
|---|---|---|---|
| 1 | Tachometer (RPM) | 23 | Main tank level (liters, without tip tanks) |
| 2 | Anemometer (kts) | 24 | Machmeter |
| 3 | Gyrocompass | 25 | Hydraulic pressure (hpz) |
| 4 | Attitude indicator | 26 | Voltmeter (volts) |
| 5 | Accelerometer (G-force) | 27 | Servo light |
| 6 | Nozzle temperature (Celsius) | 28 | Unlocked landing gear light |
| 7 | Altimeter (ft) | 29 | Starter light |
| 8 | Variometer (ft/min) | 30 | Panel lights (compass) |
| 9 | Turn coordinator | 31 | Servo switch |
| 10 | ADF indicator | 32 | Defrost handle |
| 11 | Landing gear state | 33 | Pitot heat switch |
| 12 | Oil temperature (Celsius) | 34 | Attitude indicator gyro supply switch |
| 13 | Pitch trim indicator (degrees) | 35 | Gyrocompass gyro supply switch |
| 14 | Flaps indicator | 36 | Generator switch |
| 15 | Oil pressure (hpz) | 37 | Battery switch |
| 16 | Cabin altitude (ft) | 38 | Landing gear handle |
| 17 | Oxygen regulator | 39 | Fuel pressure light |
| 18 | Sight setting (inoperative) | 40 | Landing gear alarm test |
| 19 | Horizontal situation indicator | 41 | Parking brake handle |
| 20 | Low fuel light (150 liters) | 42 | EFB button |
| 21 | Canopy lock light | 43 | Smoke switch |
| 22 | Engine fire lights | 44 | Compass |

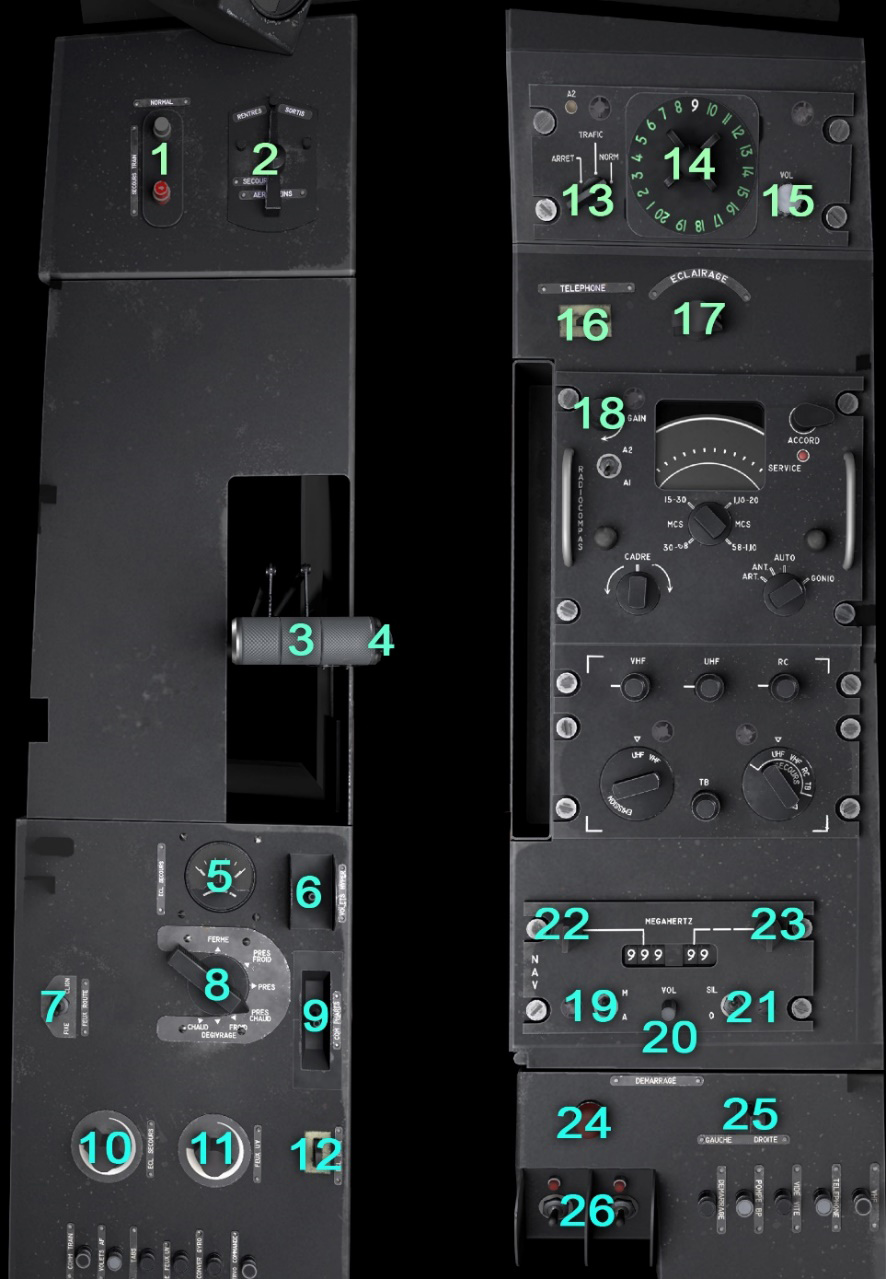

Lateral consoles (pilot)
| # | Description | # | Description |
|---|---|---|---|
| 1 | Landing gear hyraulic circuit selector | 14 | COM frequency knob |
| 2 | Emergency spoilers selector | 15 | COM volume |
| 3 | Throttle | 16 | Intercom switch |
| 4 | Spoilers switch | 17 | Panel lights (radio) |
| 5 | Air conditioning temperature | 18 | ADF frequency |
| 6 | Flaps switch | 19 | NAV panel ON/OFF |
| 7 | Navigation lights switch | 20 | NAV volume |
| 8 | Air conditioning mode | 21 | VOR ident |
| 9 | Landing lights switch | 22 | VOR frequency knob |
| 10 | Panel lights (emergency) | 23 | VOR frequency knob |
| 11 | Panel lights (UV) | 24 | Starter light |
| 12 | Panel lights (console) | 25 | Starter |
| 13 | UHF panel ON/OFF | 26 | Fuel dump switches |

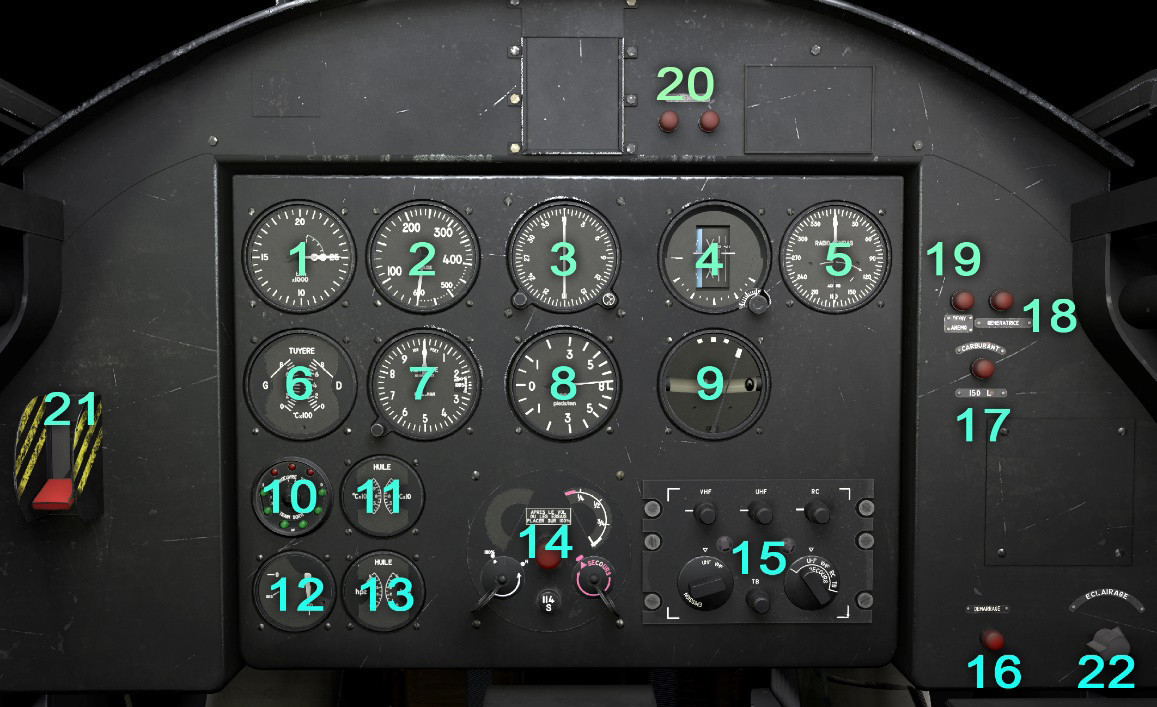

Front panel (copilot)
| # | Description | # | Description |
|---|---|---|---|
| 1 | Tachometer (RPM) | 12 | Flaps indicator |
| 2 | Anemometer (kts) | 13 | Oil pressure (hpz) |
| 3 | Gyrocompass | 14 | Oxygen regulator |
| 4 | Attitude indicator | 15 | Intercom panel (inoperative) |
| 5 | ADF indicator | 16 | Starter light |
| 6 | Nozzle temperature (Celsius) | 17 | Low fuel light (150 liters) |
| 7 | Altimeter (ft) | 18 | Generator light |
| 8 | Variometer (ft/min) | 19 | Pitot heat light |
| 9 | Turn coordinator | 20 | Engine fire lights |
| 10 | Landing gear state | 21 | Landing gear handle |
| 11 | Oil temperature (Celsius) | 22 | Panel lights (radio) |
Instruments

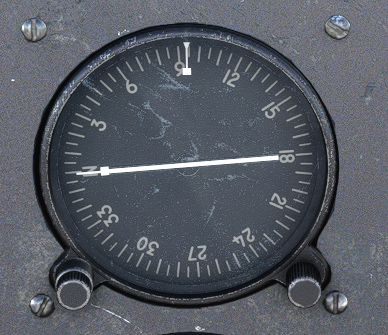

BEZU 32 gyrocompass
The aircraft is equipped with a gyrocompass (BEZU 32 model).
You can use the right knob to switch between two modes:
-
Gyrocompass (D mode): Connected to the aircraft gyroscope, you will get a smooth rotation but you will need to recalibrate it frequently, like any gyrocompass.
-
Magnetic compass (Cm mode): Indicating the magnetic heading, recalibration is not needed but display can become jerky, especially when aircraft is turning.
With the left knob, you can:
-
Recalibrate the instrument (only if D mode is selected).
-
Set heading bug (can be used to conserve a reference heading).

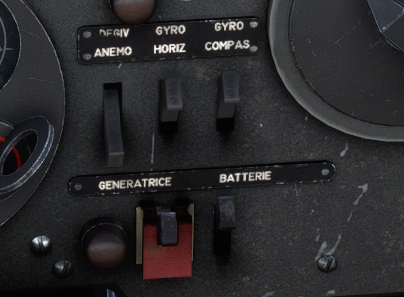

A switch allows to manage gyrocompass supply:

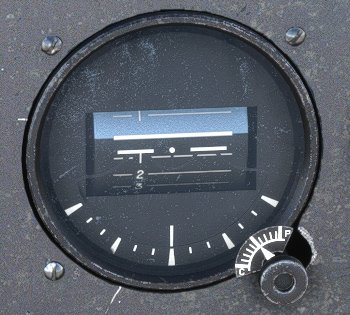

Attitude indicator
Attitude indicator fitted into the Magister is a classical one. The only setting available is the bars position change.
This instrument will indicate pitch angle between 0 and 80 degrees and bank angle with a graduation each 10 degrees between 0 and 60 degrees.
A switch allows to manage attitude gyroscope supply:
