Reference speeds
| |
|---|
| General | |
| Stall speed (full flaps) | 78 kts |
| Stall speed (no flaps) | 87 kts |
| Rotation speed | 90 kts |
| Initial climb speed | 120 kts |
| Final approach speed | 110 kts |
| Maximum speed in turbulent air (VNO) | 250 kts |
| Maximum gear extended | 215 kts |
| Maximum speed | 400 kts |
| Never exceed speed (VNE) | 450 kts |
| Recommended for aerobatics | |
| Loop | 280 kts |
| Roll | 260 kts |
| Cuban Eight | 280 kts |
Checklists
In addition to this manual, you can find in-game interactive checklists, with dynamic validation and cameras management to help you complete each step.
| STARTING ENGINE | |
|---|
| Battery | ON |
| For each engine: | |
| Throttle | 0 % |
| Fuel valve | CLOSED |
| Starter | ON |
| Wait for 1000 RPM | |
| Ignition | ON |
| Fuel valve | OPENED |
| Wait for 4000 RPM | |
| Ignition | OFF |
| Starter | OFF |
| Oil pressure | 1 bar |
| Alternator | ON |
| Voltage | 28.5 V |

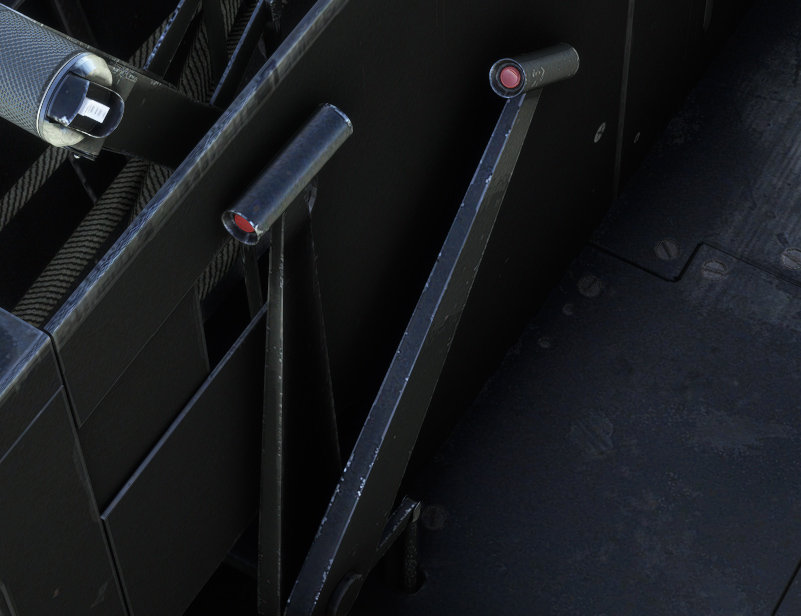

Order of actions is very important for engines. Once starter is running, depressing the button on the fuel handle will initiates ignition, and pushing the handle will cause fuel to flow through the combined injection spark plugs into the combustion chamber.
At this moment, nozzle temperature should increase by approximately 100 degrees Celsius within ten seconds. Ignition button must be released immediately to avoid damaging the engine.
| BEFORE TAXI | |
|---|
| Canopy | CLOSED |
| Radio (UFH) | ON |
| Attitude indicator gyro | ON |
| Gyrocompass gyro | ON |
| Hydraulic pressure | OK |
| Aileron servo | ON |
| Spoilers | RETRACTED |
| BEFORE TAKEOFF | |
|---|
| Flaps | 15 degrees |
| Canopy | LOCKED |
| Oxygen | 100 % |
| Trim | NEUTRAL |
| Pitot heat | ON |
| AFTER TAKEOFF | |
|---|
| Landing gear | UP |
| Flaps | RETRACTED |
| Oxygen | NORMAL |
| BEFORE LANDING | |
|---|
| Landing gear | DOWN |
| Hydraulic pressure | OK |
| Landing lights | ON |
| Flaps | 40 degrees |
| AFTER LANDING | |
|---|
| Trim | NEUTRAL |
| Spoilers | RETRACTED |
| Flaps | RETRACTED |
| SHUTDOWN | |
|---|
| Oxygen | 100 % |
| Pitot heat | OFF |
| Attitude indicator gyro | OFF |
| Gyrocompass gyro | OFF |
| Aileron servo | OFF |
| Fuel valve (both) | CLOSED |
| Battery | OFF |
