General description
Specifications
| Weights | |
| Empty weight | 870 kg |
| Maximum takeoff weight | 1250 kg |
| Dimensions | |
| Wingspan | 7.92 m |
| Length | 7.59 m |
| Height | 2.66 m |
| Wing area | 9 m² |
| Engine | |
| Peak power | 300 HP |
| Maximum engine speed | 2700 RPM |
| Cubic capacity | 8.87 L |
| Compression ratio | 8.7 |
| Propeller diameter | 1.98 m |
| Fuel capacity | 210 L |
| Limits | |
| G-Force | + 5.5 G / − 2.75 G |
| Maximum altitude | 12000 ft |
| Maximum crosswind | 25 kt |
Detailed views

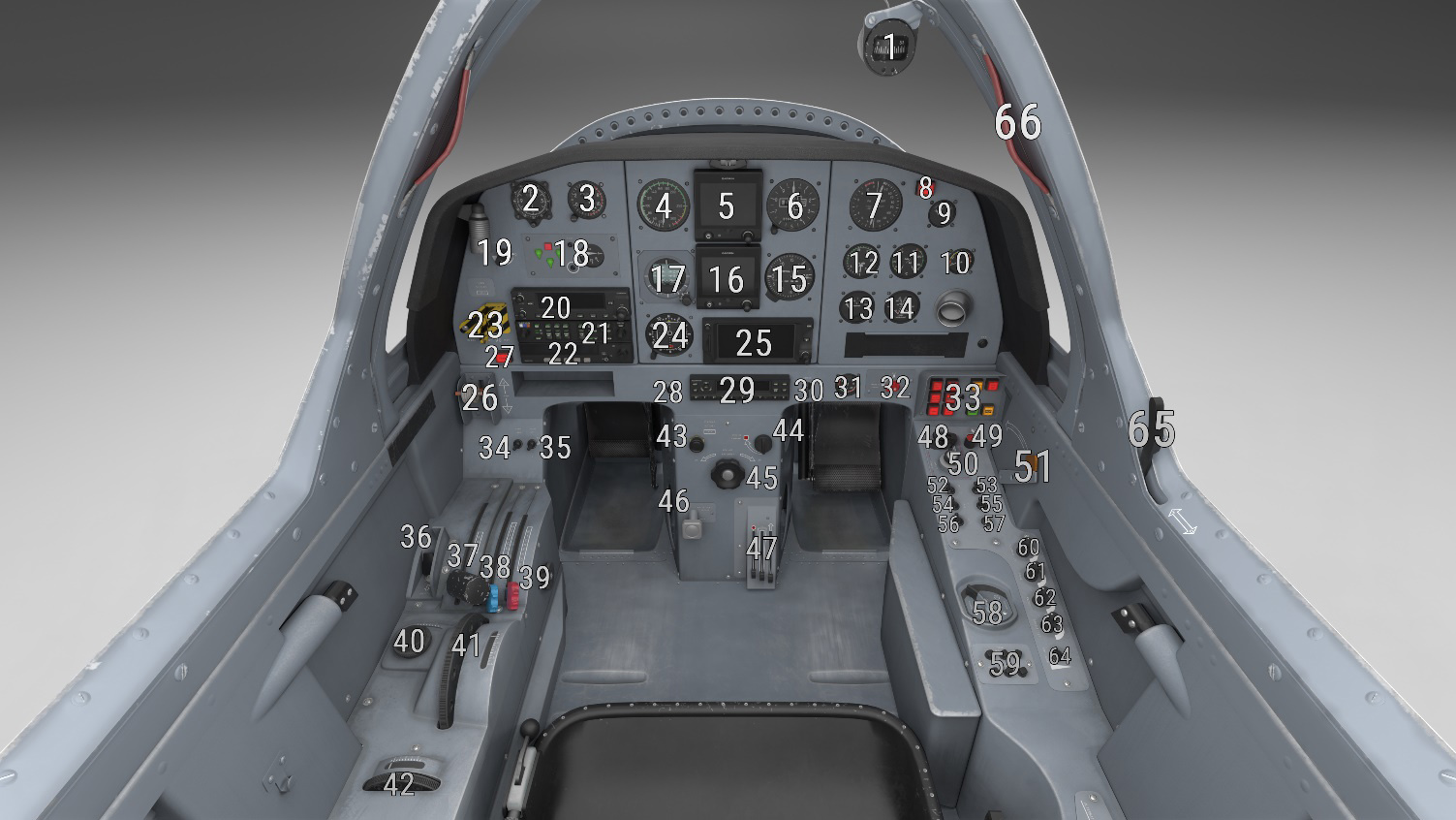

Front station
| # | Description | # | Description |
|---|---|---|---|
| 1 | Compass | 34 | Fuel pump switch |
| 2 | Clock | 35 | Taxi and landing lights switch |
| 3 | Accelerometer (G-force) | 36 | Flaps switch |
| 4 | Anemometer (knots) | 37 | Throttle lever |
| 5 | G5 PFD (slip ball above) | 38 | Propeller lever |
| 6 | Altimeter (feet) | 39 | Mixture lever |
| 7 | Manifold pressure (mbar) & fuel flow (litres per hour) | 40 | Rudder trim |
| 8 | General failure light | 41 | Pitch trim |
| 9 | Outside air temperature (°Celsius) | 42 | Roll trim |
| 10 | Oil pressure (bars) | 43 | Alternate static handle |
| 11 | Oil temperature & cylinder head temperature (°Celsius) | 44 | Parking brake |
| 12 | Tachymeter (RPM) | 45 | Rudder pedals setting |
| 13 | Exhaust gas temperature (°Celsius) | 46 | Engine hot air lever |
| 14 | Fuel level (litres) | 47 | Cabin air conditioning levers |
| 15 | Vertical speed indicator (ft/min) | 48 | Battery switch |
| 16 | G5 HSI | 49 | Starter button |
| 17 | Attitude indicator | 50 | Alternator switch |
| 18 | Flaps and landing gear position monitoring panel | 51 | Fuel cut-off handle |
| 19 | Map light knob | 52 | Strobes switch |
| 20 | GNC 255 radio (COM 2/NAV 2) | 53 | Gyroscope switch |
| 21 | GMA 340 audio panel | 54 | Navigation lights switch |
| 22 | KR87 ADF receiver | 55 | Avionics switch |
| 23 | Emergency gear lever | 56 | Pitot heat switch |
| 24 | VOR Gauge | 57 | Pitot heat light |
| 25 | GPS unit | 58 | Fuel tank selector |
| 26 | Landing gear lever | 59 | Engine monitoring gauges circuit breakers |
| 27 | Landing gear warning light | 60 | UV lights knob |
| 28 | NAV source (VOR gauge) | 61 | Red lights knob |
| 29 | GTX 335 transponder | 62 | Radio lights knob |
| 30 | Smoke switch | 63 | Console lights knob |
| 31 | Voltmeter (volts) | 64 | Alarms lighting intensity switch |
| 32 | Magneto selector | 65 | Canopy locking handle |
| 33 | Alarms panel | 66 | Canopy opening handle |

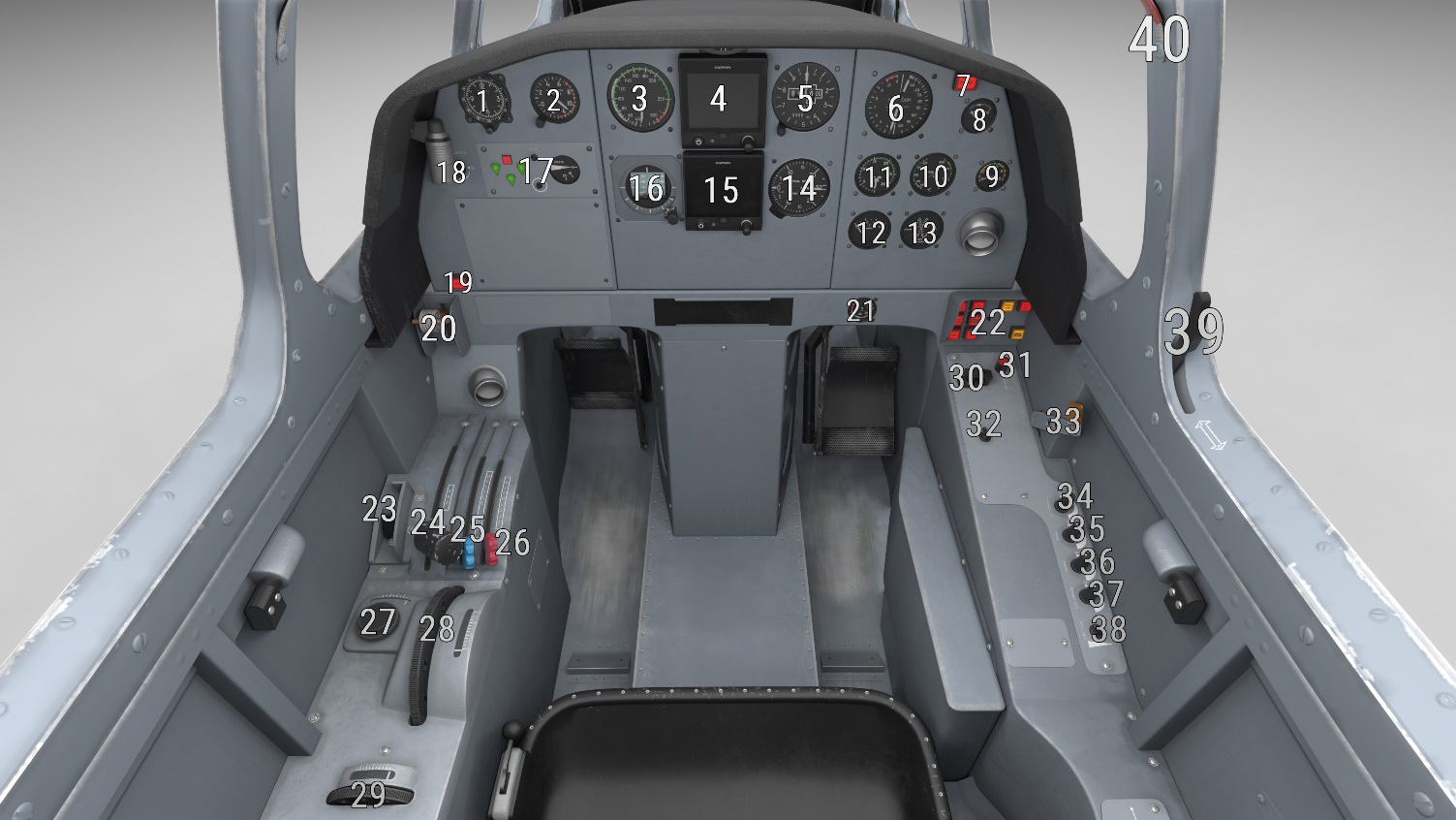

Rear station
| # | Description | # | Description |
|---|---|---|---|
| 1 | Clock | 21 | Voltmeter (volts) |
| 2 | Accelerometer (G-force) | 22 | Alarms panel |
| 3 | Anemometer (knots) | 23 | Flaps switch |
| 4 | G5 PFD (slip ball above) | 24 | Throttle lever |
| 5 | Altimeter (feet) | 25 | Propeller lever |
| 6 | Manifold pressure (mbar) & fuel flow (litres per hour) | 26 | Mixture lever |
| 7 | General failure light | 27 | Rudder trim |
| 8 | Outside air temperature (°Celsius) | 28 | Pitch trim |
| 9 | Oil pressure (bars) | 29 | Roll trim |
| 10 | Oil temperature & cylinder head temperature (°Celsius) | 30 | Alternator switch |
| 11 | Tachymeter (RPM) | 31 | Starter button |
| 12 | Exhaust gas temperature (°Celsius) | 32 | Gyroscope switch |
| 13 | Fuel level (litres) | 33 | Fuel cut-off handle |
| 14 | Vertical speed indicator (ft/min) | 34 | UV lights knob |
| 15 | G5 HSI | 35 | Red lights knob |
| 16 | Attitude indicator | 36 | Radio lights knob |
| 17 | Flaps and landing gear position monitoring panel | 37 | Console lights knob |
| 18 | Map light knob | 38 | Alarms lighting intensity switch |
| 19 | Landing gear warning light | 39 | Canopy locking handle |
| 20 | Landing gear lever | 40 | Canopy opening handle |
