Controls assignments
In addition to default control assignments, our aircraft is using custom variables and events to manage all its systems.
Custom variables are called L Vars (prefixed with “L:”) and custom events are called H Events (prefixed with “H:”).
If you have external hardware and you are using specific software like FSUIPC or SPAD, you can assign buttons or switches to those variables and events.

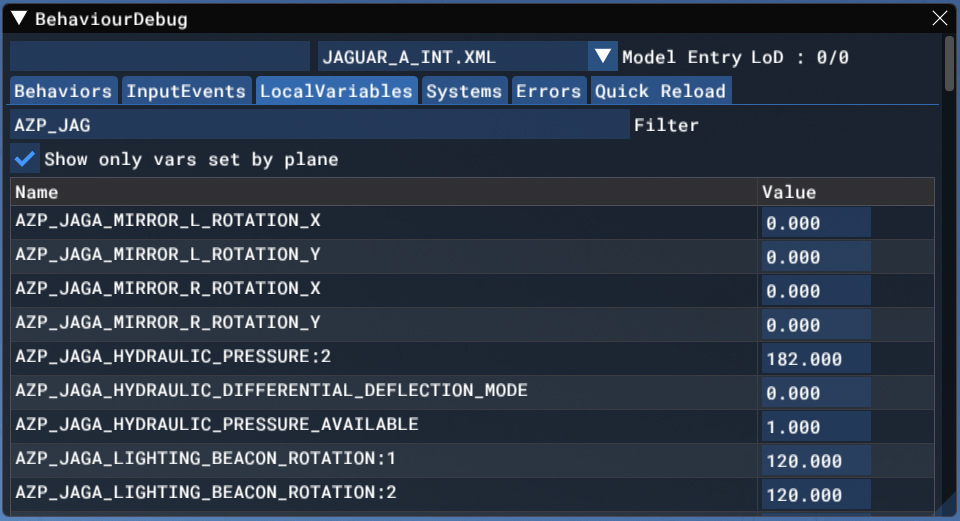

In order to see custom variables related to the aircraft, you need to enable Developer mode (general options) and go to Tools > Behaviors > Local Variables on top menu bar. All custom variables are prefixed with “AZP_JAG” keyword.
However, changing those L VARS is not always enough and you may need to call the events described in the next section.
Custom events
Here is non-exhaustive list of main H Events that you can use in order to interact with aircraft systems.
| Name | H event | Description |
|---|---|---|
| EFB display | AZP_JAGA_TOGGLE_EFB_POWER | Display or hide EFB tablet |
| EFB position | AZP_JAGA_TOGGLE_EFB_POSITION | Switch between the two EFB positions |
| Chocks display | AZP_JAGA_TOGGLE_CHOCKS | Display or hide wheel chocks |
| Covers display | AZP_JAGA_TOGGLE_COVERS | Display or hide external covers |
| Ladder display | AZP_JAGA_LADDER_REMOVE | Remove ladder |
| Control locks display | AZP_JAGA_INTERIOR_RIBBON_REMOVE | Remove control locks (ribbon) |
| Yoke display | AZP_JAGA_TOGGLE_YOKE_VISIBILITY | Display or hide yoke |
| Canopy lock | AZP_JAGA_CANOPY_LOCK_TOGGLE | Toggle canopy lock |
| Canopy toggle | AZP_JAGA_CANOPY_TOGGLE | Open close canopy |
| Canopy repair | AZP_JAGA_CANOPY_REPAIR | Repair canopy once it has been jettisoned |
| External stores release | AZP_JAGA_STORES_EMERGENCY_RELEASE_PRESSED | Release all external stores |
| Engine starter switch | AZP_JAGA_ENGINE_STARTER_LEFT AZP_JAGA_ENGINE_STARTER_NEUTRAL AZP_JAGA_ENGINE_STARTER_RIGHT | Set engine starter switch position |
| Engine restart buttons | AZP_JAGA_ENGINE_RESTART_LEFT AZP_JAGA_ENGINE_RESTART_RIGHT | Trigger in-flight restart |
| APU start switch | AZP_JAGA_APU_START_STOP_SWITCH_TOGGLE | Toggle APU start switch position |
| APU start button | AZP_JAGA_APU_STARTER_PUSHED | Start APU |
| Alternator switches | AZP_JAGA_ALTERNATOR_1_OFF AZP_JAGA_ALTERNATOR_1_ON AZP_JAGA_ALTERNATOR_1_REARM AZP_JAGA_ALTERNATOR_2_OFF AZP_JAGA_ALTERNATOR_2_ON AZP_JAGA_ALTERNATOR_2_REARM | Set alternator switches position |
| Rectifier switches | AZP_JAGA_RECTIFIER_1_OFF AZP_JAGA_RECTIFIER_1_ON AZP_JAGA_RECTIFIER_1_REARM AZP_JAGA_RECTIFIER_2_OFF AZP_JAGA_RECTIFIER_2_ON AZP_JAGA_RECTIFIER_2_REARM | Set rectifier switches position |
| Crash switches | AZP_JAGA_ELECTRICAL_CRASH_GROUP_TOGGLE AZP_JAGA_ELECTRICAL_CRASH_BATTERY_TOGGLE AZP_JAGA_ELECTRICAL_CRASH_ALT1_TOGGLE AZP_JAGA_ELECTRICAL_CRASH_ALT2_TOGGLE AZP_JAGA_ELECTRICAL_CRASH_EXTINGUISHERS_TOGGLE | Set crash switches position |
| Navigation lights | AZP_JAGA_LIGHTS_NAV_OFF AZP_JAGA_LIGHTS_NAV_FIXED_NORM AZP_JAGA_LIGHTS_NAV_FIXED_DIM AZP_JAGA_LIGHTS_NAV_FLASH | Set navigation lights switch position |
| Formation refuel lights | AZP_JAGA_LIGHTS_FORM_OFF AZP_JAGA_LIGHTS_FORM_EMER AZP_JAGA_LIGHTS_FORM_REFUEL_NORM AZP_JAGA_LIGHTS_FORM_NORM AZP_JAGA_LIGHTS_FORM_DIM | Set formation refuel lights switch position |
| V1/V2 fuel valves | AZP_JAGA_FUEL_V1_V2_VALVES_TOGGLE | Toggle V1/V2 fuel valves |
| Fuel totalizer | AZP_JAGA_FUEL_TOTALIZER_INC AZP_JAGA_FUEL_TOTALIZER_DEC AZP_JAGA_FUEL_TOTALIZER_SET | Increase, decrease or set fuel totalizer |
| Hydraulic electro pump switch | AZP_JAGA_HYDRAULIC_ELECTRO_PUMP_EMER AZP_JAGA_HYDRAULIC_ELECTRO_PUMP_AUTO AZP_JAGA_HYDRAULIC_ELECTRO_PUMP_OFF | Set electro pump switch position |
| Emergency landing gear toggle | AZP_JAGA_HYDRAULIC_EMERGENCY_GEAR_TOGGLE | Extend landing gear in case of hydraulic failure |
| Rudder deflection switch | AZP_JAGA_HYDRAULIC_RUDDER_DEFLECTION_SWITCH_AUTO AZP_JAGA_HYDRAULIC_RUDDER_DEFLECTION_SWITCH_BIG AZP_JAGA_HYDRAULIC_RUDDER_DEFLECTION_SWITCH_SMALL | Set rudder deflection switch position |
| Autopilot master toggle | AZP_JAGA_AUTOPILOT_MASTER_TOGGLE | Toggle master autopilot |
| Autopilot ALT toggle | AZP_JAGA_AUTOPILOT_ALT_TOGGLE | Toggle autopilot ALT mode |
| Decision height index | AZP_JAGA_INSTRUMENT_DECISION_HEIGHT_1_INC AZP_JAGA_INSTRUMENT_DECISION_HEIGHT_1_DEC | Set decision height index |
| Master warn reset | AZP_JAGA_ALARMS_RESET_PRESSED | Reset alarms master warn |
| Indicator lights mode switch | AZP_JAGA_ALARMS_NIGHT_MODE_TOGGLE | Toggle day night mode for indicator lights |
| Alarms detection mode switch | AZP_JAGA_ALARMS_DETECTION_SWITCH_TEST AZP_JAGA_ALARMS_DETECTION_SWITCH_ON AZP_JAGA_ALARMS_DETECTION_SWITCH_MUTE | Set alarms detection mode switch |
| Alarms master switch | AZP_JAGA_ALARMS_MASTER_SWITCH_TOGGLE | Toggle alarms master detection switch |
