General description
Specifications
| Weights | |
| Empty weight | 16,130 lbs / 7,315 kg |
| Maximum takeoff weight | 32,630 lbs / 14,800 kg |
| Dimensions | |
| Wingspan | 28.5 ft / 8.69 m |
| Length | 55.2 ft / 16.83 m |
| Height | 16 ft / 4.89 m |
| Wing area | 258.3 sq ft / 24 m² |
| Engines | |
| Type | Rolls-Royce/Turbomeca Adour Mk.102 |
| Number | 2 |
| Maximum thrust | 7,150 lbf / 3,240 kgf |
| Rated N2 speed | 15,510 RPM |
| Fuel capacity (internal) | 1,105 gal / 4,185 L |
| Fuel capacity (external, per tank) | 315 gal / 1,195 L |
| Limits | |
| Service ceiling | 45,000 ft |
| Maximum speed | Mach 1.4 |
| Maximum range | Around 1,600 nm |
Detailed views
You will find in this section the different parts of the cockpit with their respective functionalities. Please refer to next sections to get more detailed information about each separate system. If needed, you can enable tooltips in your simulator to get a description when hovering buttons, knobs and switches.

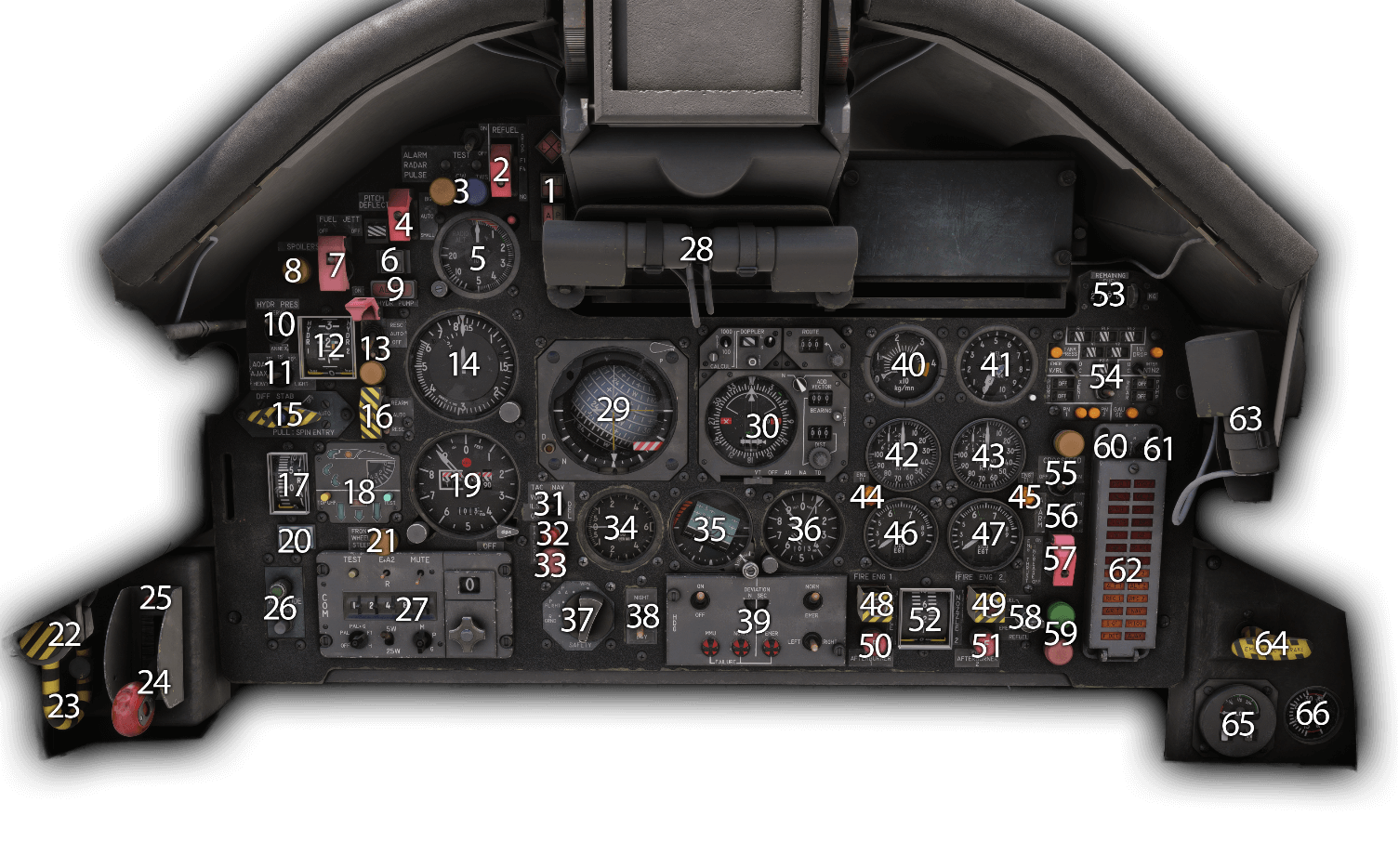

Main panel
| # | Description | # | Description |
|---|---|---|---|
| 1 | Autopilot buttons | 34 | Variometer |
| 2 | F1 and F4 tanks valves switch | 35 | Secondary attitude indicator |
| 3 | Radar CW/TWS (INOP) | 36 | Secondary altimeter |
| 4 | Yaw deflection switch & indicator | 37 | Weapons safety knob |
| 5 | Radio altimeter | 38 | Camera obturator mode switch (INOP) |
| 6 | Flares light (INOP) | 39 | Heading control panel |
| 7 | Fuel jettison switch | 40 | Fuel flow indicator |
| 8 | Spoilers extended light | 41 | Fuel level indicator |
| 9 | Master alarm light | 42 | Left engine tachometer |
| 10 | Hydraulic gauge reading switch | 43 | Right engine tachometer |
| 11 | AJAX gain selector | 44 | Left engine thrust increase light (INOP) |
| 12 | Hydraulic pressure gauge | 45 | Right engine thrust increase light (INOP) |
| 13 | Hydraulic electro-pump switch & light | 46 | Left engine exhaust gas temperature indicator |
| 14 | Machmeter | 47 | Right engine exhaust gas temperature indicator |
| 15 | Differential deflection handle | 48 | Left engine fire light & extinguisher button |
| 16 | AJAX mode switch | 49 | Right engine fire light & extinguisher button |
| 17 | Pitch trim indicator | 50 | Left afterburner fire alarm light |
| 18 | Flaps and landing gear state panel | 51 | Right afterburner fire alarm light |
| 19 | Altimeter | 52 | Exhaust nozzles position |
| 20 | Slats mode button & light | 53 | Fuel totalizer |
| 21 | Nosewheel steering engaged light | 54 | Fuel control panel |
| 22 | Emergency stores release button | 55 | Engines fuel crossfeed switch |
| 23 | Emergency landing gear handle | 56 | Alarm sound disable switch |
| 24 | Landing gear handle | 57 | Engine thrust increase switch (INOP) |
| 25 | Landing gear crash button | 58 | Refueling probe knob |
| 26 | Altitude calibration panel (INOP) | 59 | Refueling probe state lights |
| 27 | COM panel | 60 | Alarms test/mute switch |
| 28 | Anti-flash lights | 61 | Alarms day/night switch |
| 29 | Sphere indicator | 62 | Alarms panel |
| 30 | Navigation indicator | 63 | Anti-flash light |
| 31 | Sphere radionav indication switch | 64 | Parking brake handle |
| 32 | Tailhook extended light | 65 | Oxygen indicator |
| 33 | IFF mode 4 light (INOP) | 66 | Battery voltmeter |

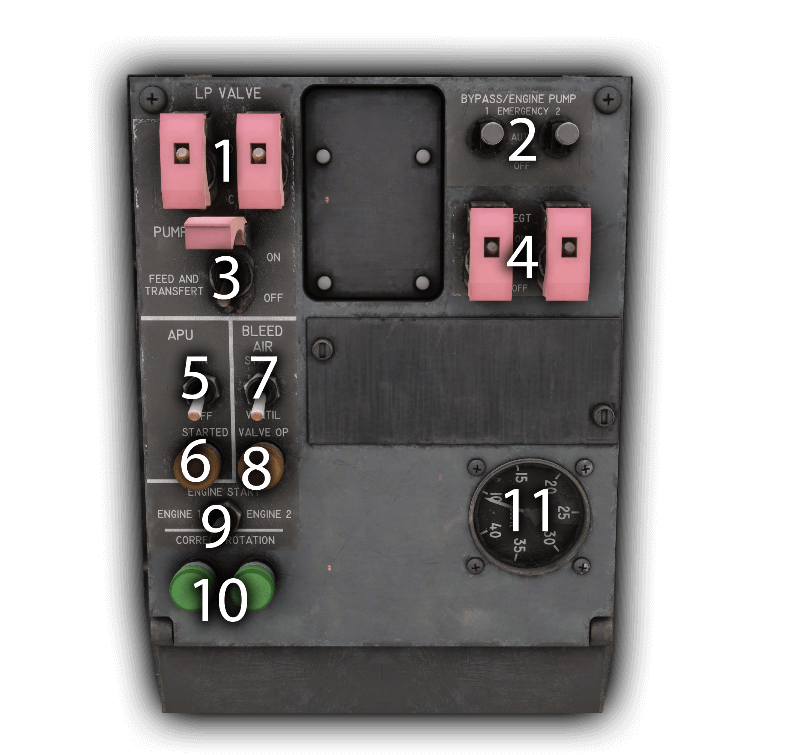

Lower panel
| # | Description | # | Description |
|---|---|---|---|
| 1 | Fuel low pressure valves switches | 7 | APU bleed air switch |
| 2 | Hydraulic power transfer switches | 8 | APU bleed air light |
| 3 | Fuel feed and transfer pumps switch | 9 | Engines starter switch |
| 4 | EGT measure amplifier switches | 10 | Engines correct rotation lights |
| 5 | APU mode switch | 11 | Cabin altitude indicator |
| 6 | APU starter button & light |

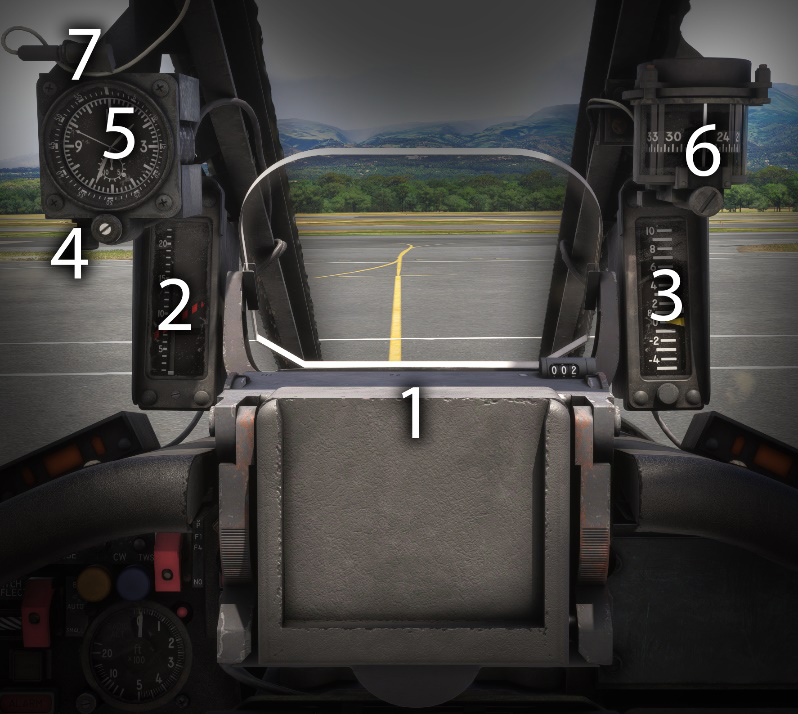

Overhead instruments
| # | Description | # | Description |
|---|---|---|---|
| 1 | Heads up display (HUD) | 5 | Clock / chronometer |
| 2 | Angle of attack indicator | 6 | Standby compass |
| 3 | Accelerometer | 7 | Frontal instrument light |
| 4 | Frontal instruments lights knob |

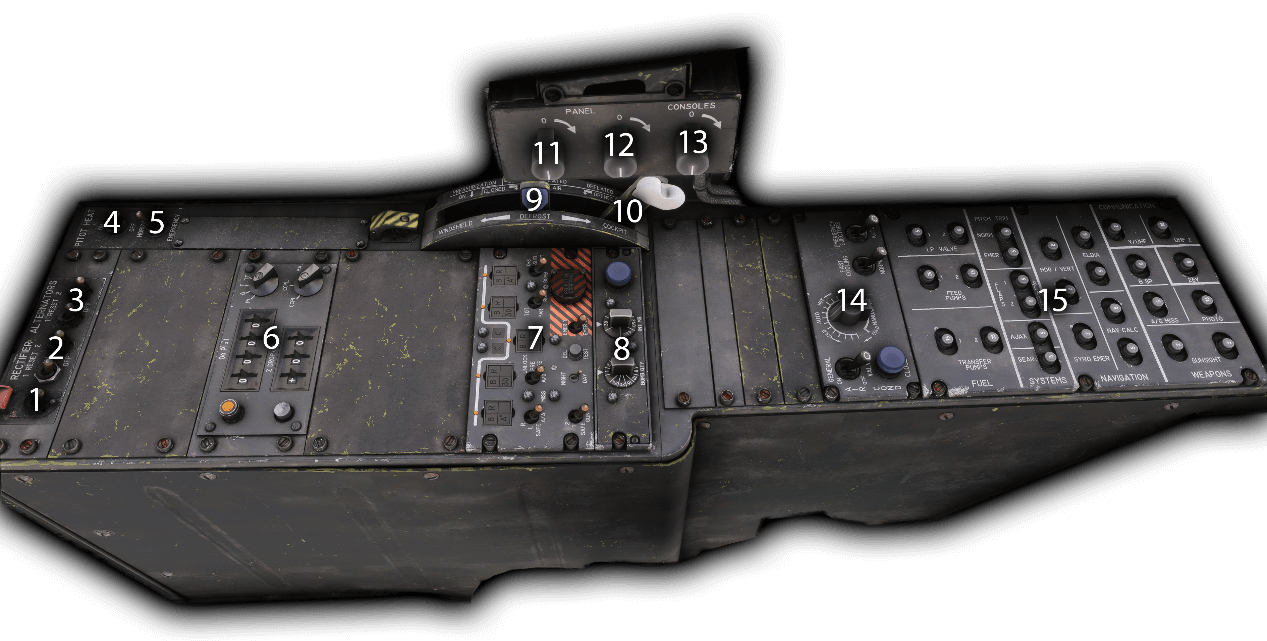

Right console
| # | Description | # | Description |
|---|---|---|---|
| 1 | Master battery switch | 9 | Windshield/cockpit defrost handle |
| 2 | Rectifiers switches | 10 | Canopy seal & pressurization lever |
| 3 | Alternators switches | 11 | Front panel red lights knob |
| 4 | Pitot heat switch | 12 | Front panel UV lights knob |
| 5 | Secondary attitude indicator power switch | 13 | Consoles red lights knob |
| 6 | Ballistic computer panel | 14 | Air conditioning panel |
| 7 | Payload selection panel | 15 | Main electrical breakers panel |
| 8 | Intervalometer panel |

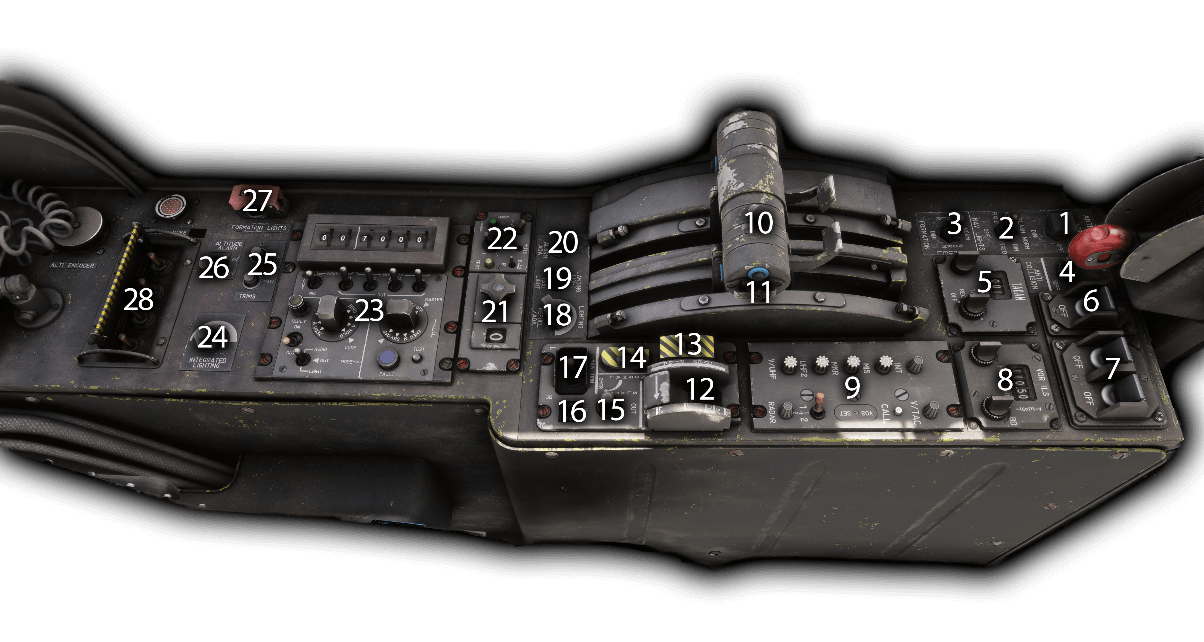

Left console
| # | Description | # | Description |
|---|---|---|---|
| 1 | Anti-flash lights switch | 15 | Slats manual mode switch |
| 2 | Navigation lights switch | 16 | Rudder trim indicator |
| 3 | Formation/refueling lights switch | 17 | Rudder trim switch |
| 4 | Anti-collision lights switch | 18 | Refueling /AOA lights intensity knob |
| 5 | TACAN panel | 19 | Taxi & landing lights switch |
| 6 | Roll stabilization switch | 20 | AOA alarm switch |
| 7 | Pitch & yaw stabilization switch | 21 | UHF2 channel preset knob |
| 8 | VOR/ILS panel | 22 | UHF2 panel |
| 9 | Intercom panel | 23 | IFF (transponder) panel |
| 10 | Throttle levers | 24 | Integrated lights knob |
| 11 | Spoilers selector | 25 | Yaw/roll trim electrical breakers |
| 12 | Flaps selector | 26 | Altitude alarm switch |
| 13 | Emergency flaps switch | 27 | Retracted probe refueling lights setting |
| 14 | Emergency pitch trim switch | 28 | Crash bar |

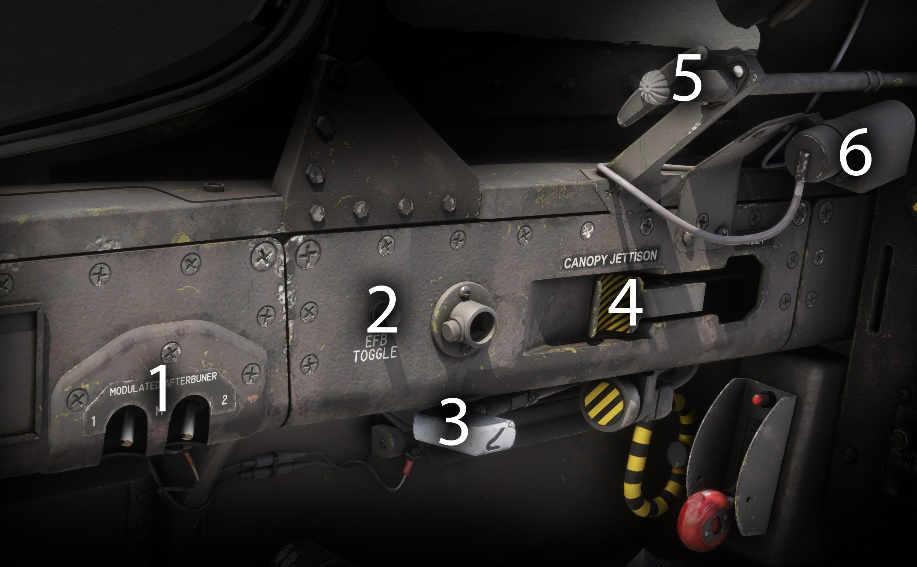

Upper left console
| # | Description | # | Description |
|---|---|---|---|
| 1 | Modulated afterburner switches (INOP) | 4 | Canopy jettison handle |
| 2 | EFB/tablet toggle switch | 5 | Drag chute handle |
| 3 | Tailhook handle | 6 | Anti-flash light |
