MISC

Description

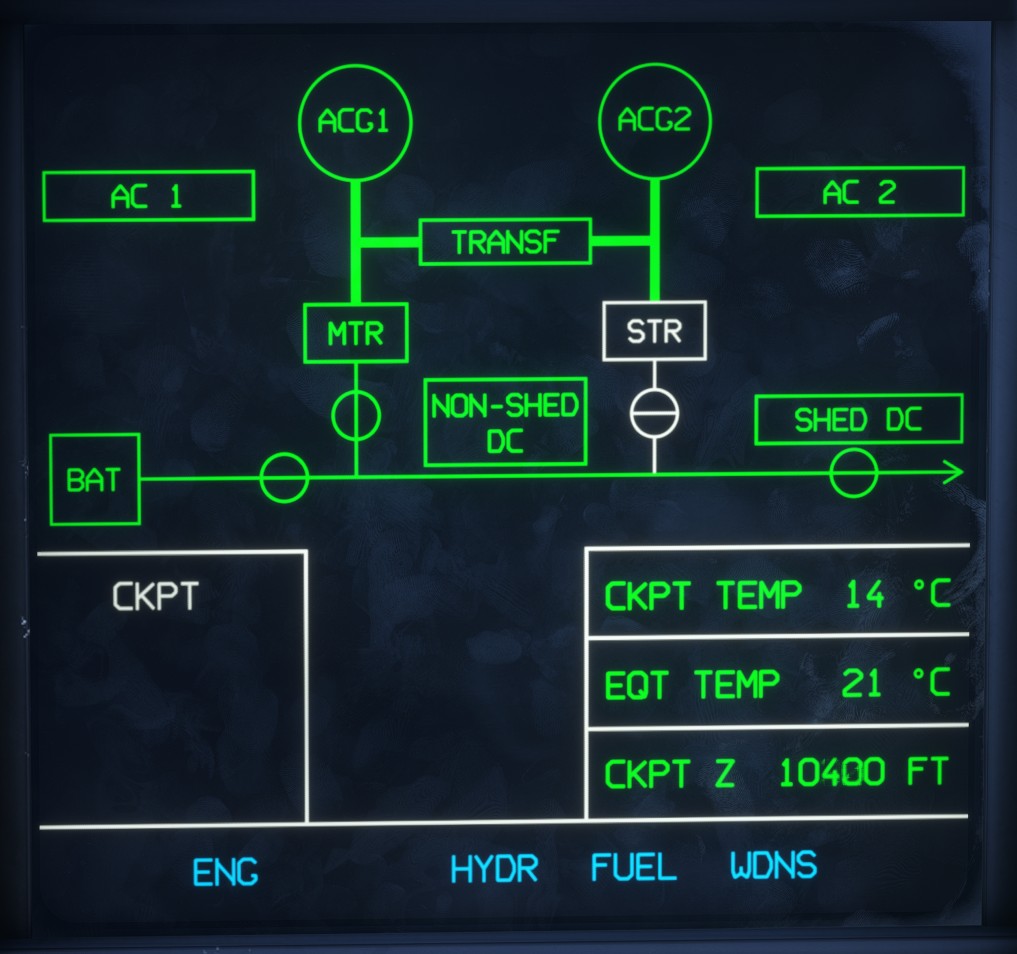

This page displays miscellaneous information about the aircraft systems, with a primary focus on the electrical system.

To access it, move the RLD Page Selection Switch to the FUEL position, then select the MISC page.

Shortcuts at the bottom of the page provide access to the ENG, HYDR, FUEL and WDNS pages.

Electrical system

The upper section provides a schematic view of the aircraft's electrical system.

The electrical system is described in greater detail in the electrical system section.

Components operating normally are displayed in green. They turn amber when they are unavailable or inoperative.

Energized electrical lines are displayed in green, while white lines indicate sections that are not powered.

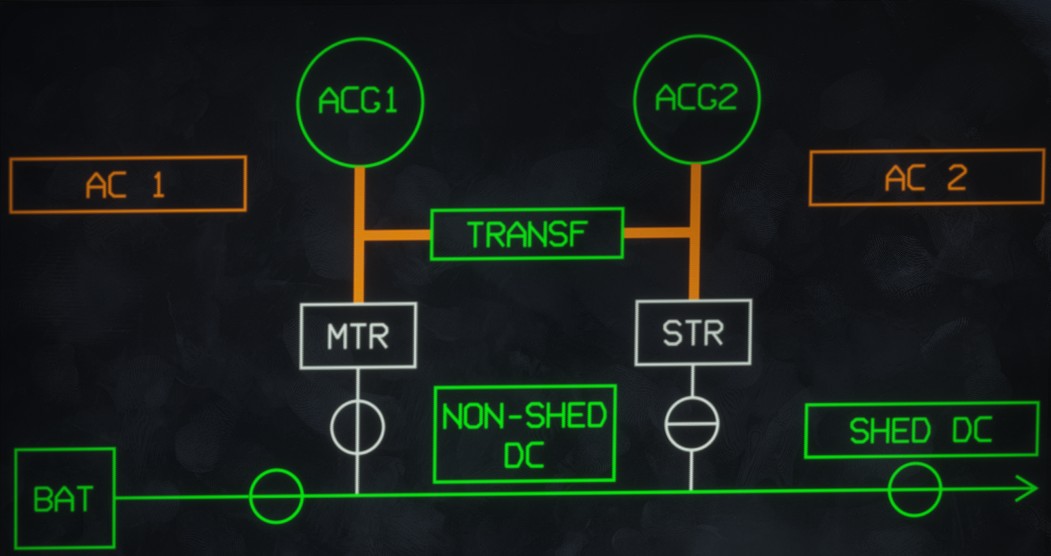

DC buses energized, both AC buses unpowered

Circles containing a transverse line represent electrical contactors:

• Battery connection to BUS DC NON-SHED.
• Connection between BUS DC SHED and BUS DC NON-SHED.
• MTR transformer connection to BUS DC NON-SHED.
• STR transformer connection to BUS DC NON-SHED.

Cockpit environment

The lower-right section displays the following cockpit environment parameters:

• Cockpit temperature, in degrees Celsius.
• Equipment compartment temperature, in degrees Celsius.
• Equivalent cockpit altitude, in feet.

The box on the left displays warnings related to the cockpit environment and associated equipment.

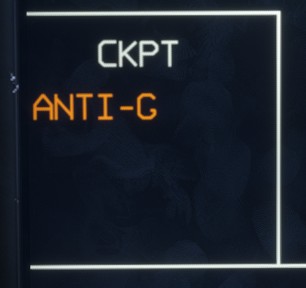

Anti-G suit unavailable
